36m Bucket Truck Aerial Working Platform Truck Mounted High-altitude Operation Truck

Place of Origin : Shandong, China

Packaging Details : Comply with Export Packaging Requirements

Supply Ability : 1000 Unit/Units per Year

Price : $80,000.00/units 1-2 units

Transmission Type : Automatic

Condition : New

Emission Standard : Euro 6

Fuel Type : Diesel

Dimensions (L x W x H) (mm) : 7800*2340*3400

After-sales Service Provided : Video technical support, Online support

Horsepower : 150-250HP

Engine Capacity : 4 - 6L

Fuel Tank Capacity : 100-200L

Drive type : 4X2

Working platform dimensions : 3000 x 1200 x 900 mm

Max. working height : 36 m

Max. operating range : 23.5 m

Rated load : 320 kg

Gross Vehicle Weight : 11280 Kg

Working boom : seven section synchronous telescopic boom

PTO System : Electronic operation

Rotary device : 360 deg continuous rotation

Port : Tianjing, Lianyungang, Qingdao, Shanghai port

Contact Now

Products Description

36m Bucket Truck Aerial Working Platform Truck Mounted High-altitude Operation Truck

Jiubang aerial working vehicle adopts JMC/JAC/ISUZU/Dongfeng as the working platform chassis. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.

SHANGHAI BAOSTEEL WORKING BOOM

High strength, stronger bearing capacity

REINFORCED TELESCOPIC BOOM

Seven section synchronous telescopic boom

Chassis
Brand	JAC	Drive	4 x 2
Dimensions(L x W x H)	7800 x 2340 x 3400(mm)	Gross Vehicle Weight	11280 Kg
Engine	Cummins	Horsepower	160 HP
Max. speed	100 Km/h	Emission Standard	Euro VI
Wheelbase	4700 mm	Braking system	Dead air brake
Approach angle	22°	Departure angle	10°
Cab	Single row / 3 passengers / Air Conditioner
Aerial work platform
Working platform dimensions	3000 x 1200 x 900 mm	Rated load	320 Kg

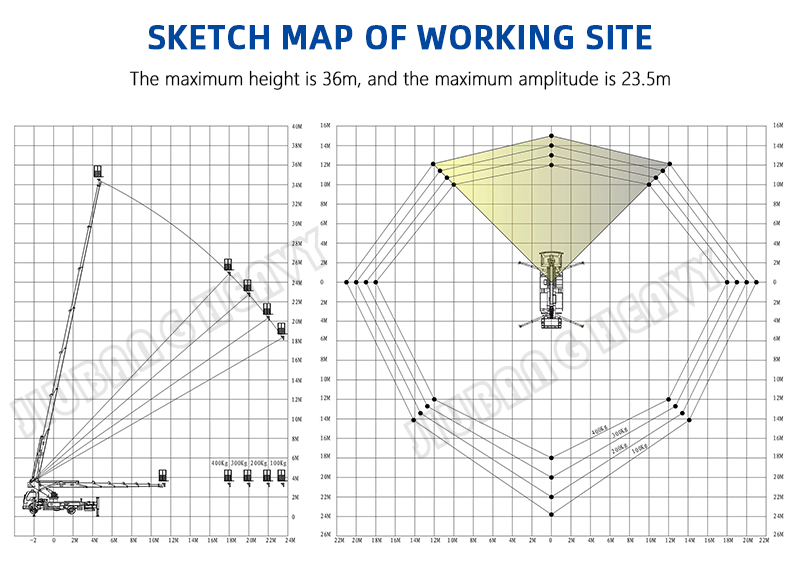

Max. working height	36 m	Operating range at max. working height	4 m
Max. operating range	23.5 m	Working height at max. operating range	27 m
Working boom	Seven section synchronous telescopic boom
PTO System	Electronic operation	Rotary device	360 deg continuous rotation
Derricking cylinder	2 set	Telescopic structure	Oil cylinder and wire rope
Outrigger	X-type hydraulic outrigger, separately controlled
Outrigger span(TVS)	5370 mm	Outrigger span(I)	5385 mm
Operation mode	Remote / electric / manual
Emergency system	Automatic
Control system	CAN bus control system
Leveling system	Liquid automatic leveling
Control voltage	24 V

PRODUCT STANDARD CONFIGURATION

Higher configuration for your choice

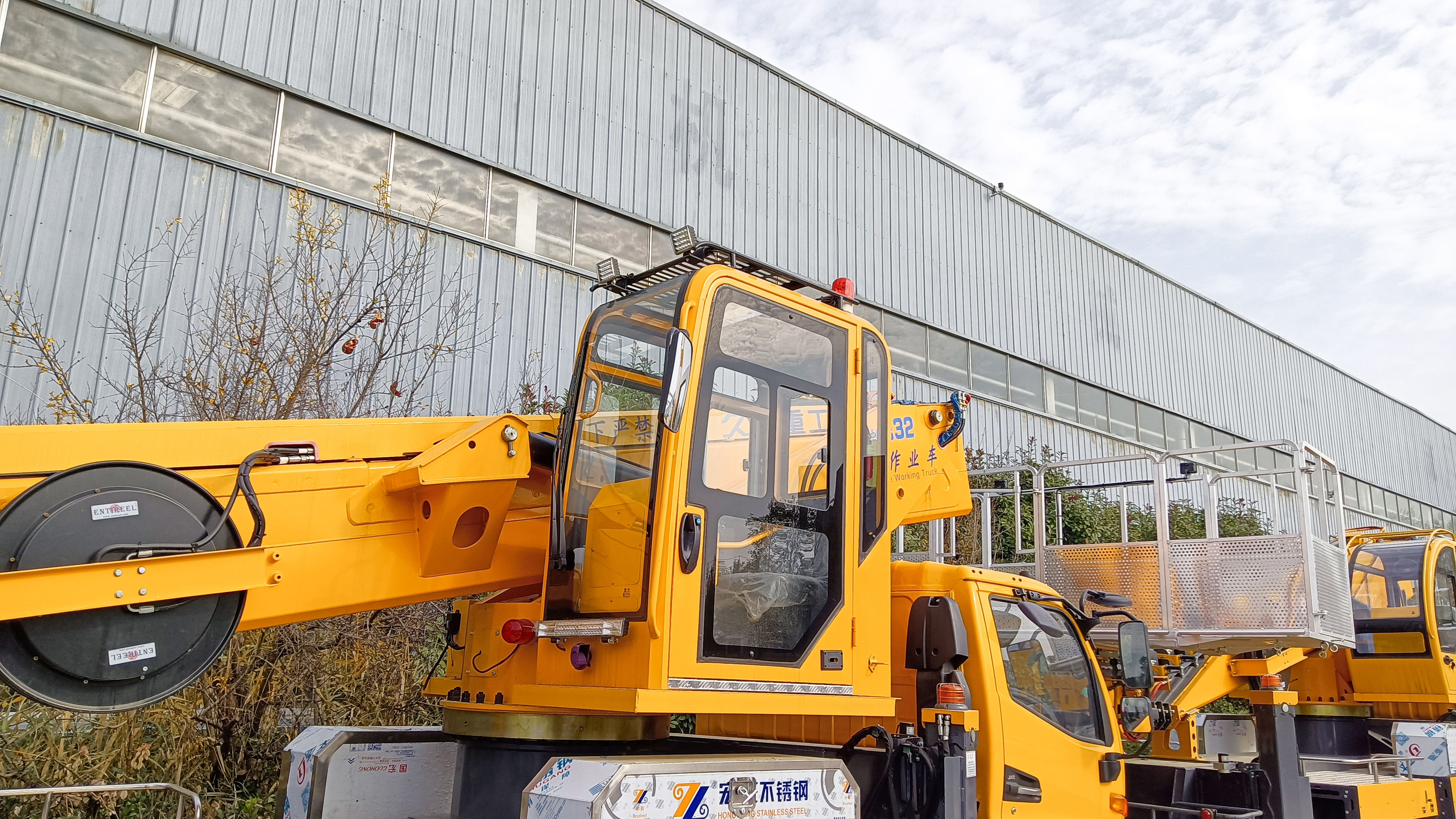

Panoramic operation room

Good visibility, more comfortable, can be equipped with air conditioning

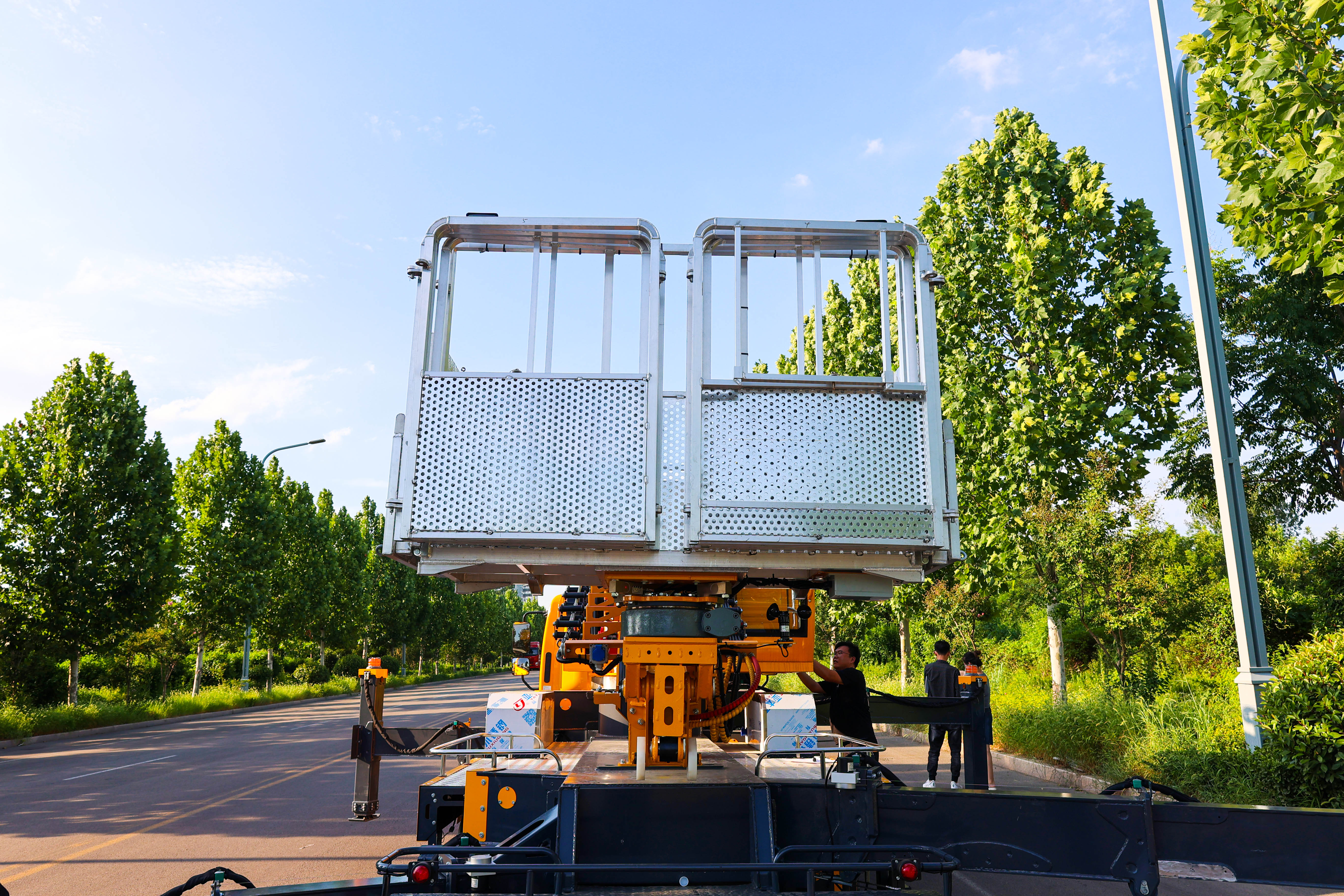

Folding work platform

Light weight, high strength and small space occupation

MORE STABLE LIFTING

Equipped with reducer and automatic leveling system

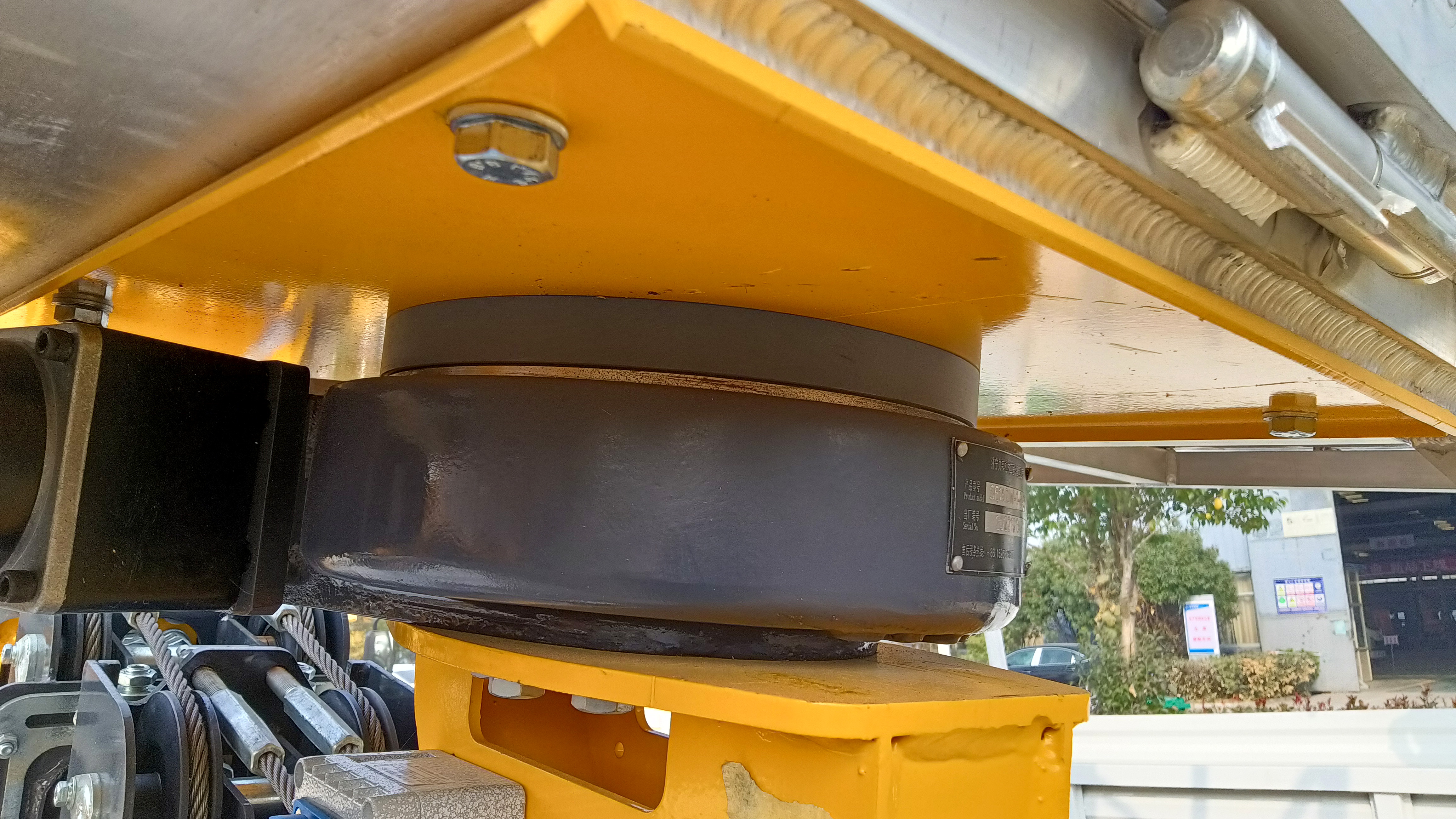

Equipped with Dejin rotary reducer, the

movement speed is adjusted stably

Liquid automatic leveling system makes the working platform more stable

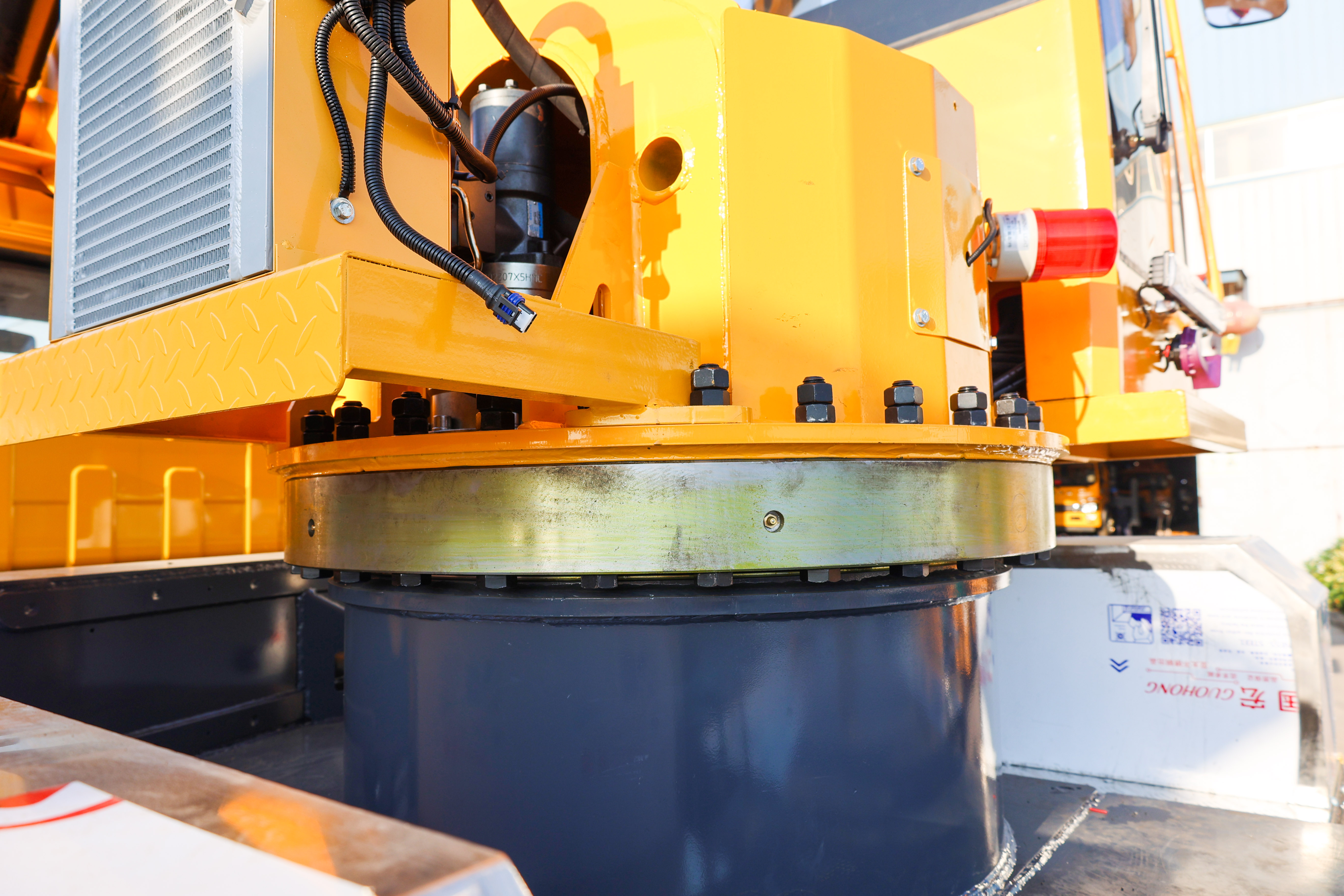

360 DEGREE ROTATION

The working platform and rotary device can rotate 360 degrees

The rotary device can rotate 360 degrees continuously

Hydraulic rotary device, 360 degree continuous rotation

FOUR IN ONE OPERATION

Different operation modes in different construction environments

MULTIPLE SECURITY GUARANTEES

Multiple safety schemes to ensure personnel and construction safety

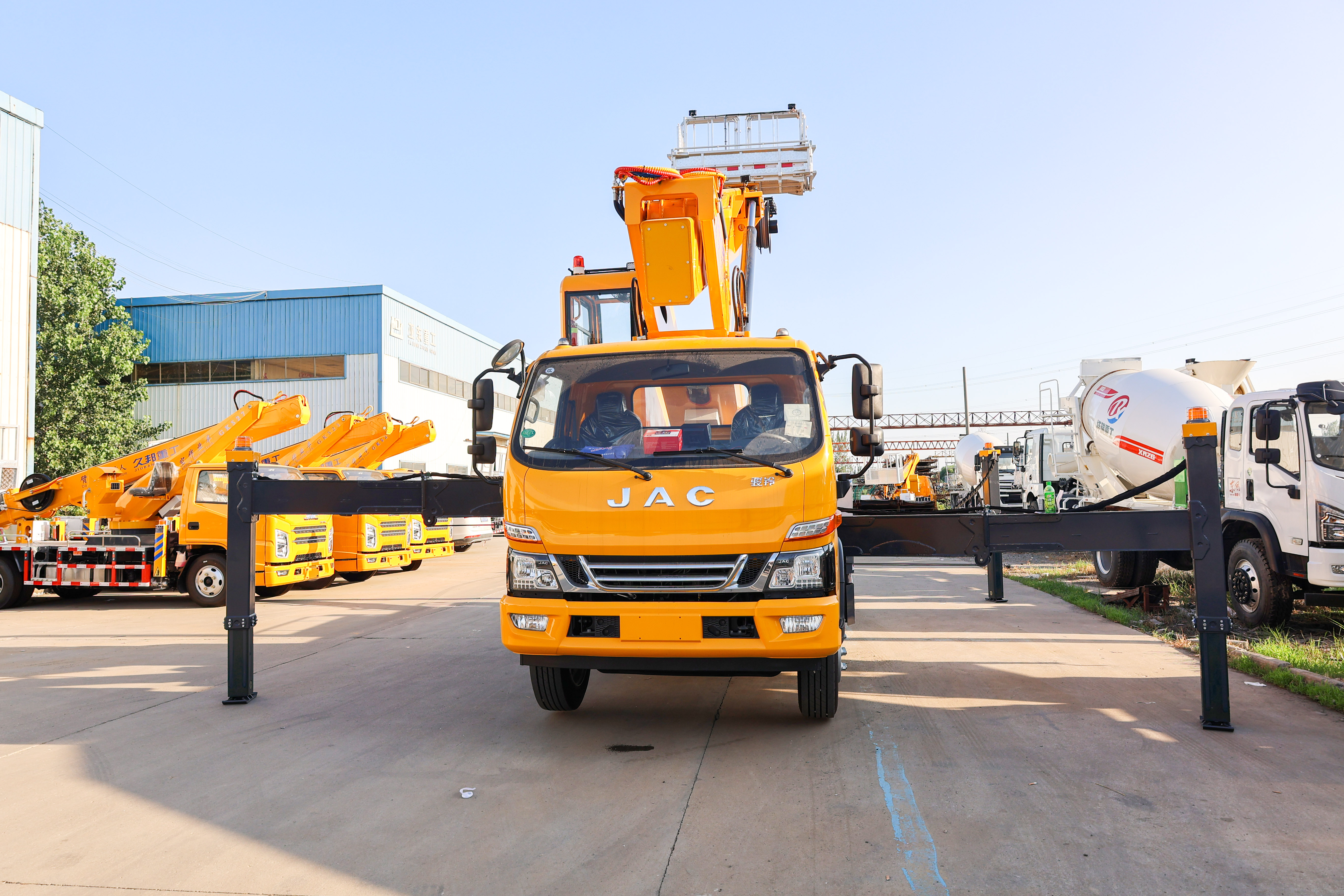

HYDRAULIC OUTRIGGER

X-type hydraulic outrigger, can be adjusted separately, more stable

Interlock the outrigger and vehicle to prevent misoperation

The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way

AUTOMATIC EMERGENCY PUMP

When the engine and main pump fail, the staff can be sent back to the ground through the emergency system

For emergency stop operation and limit boom operation

When the working range reaches the specified value, the dangerous direction will be automatically limited

Equipped with wind speed detector, when the wind speed is too high, the height will be automatically limited

Equipped with load detector to automatically limit the height and amplitude according to different loads

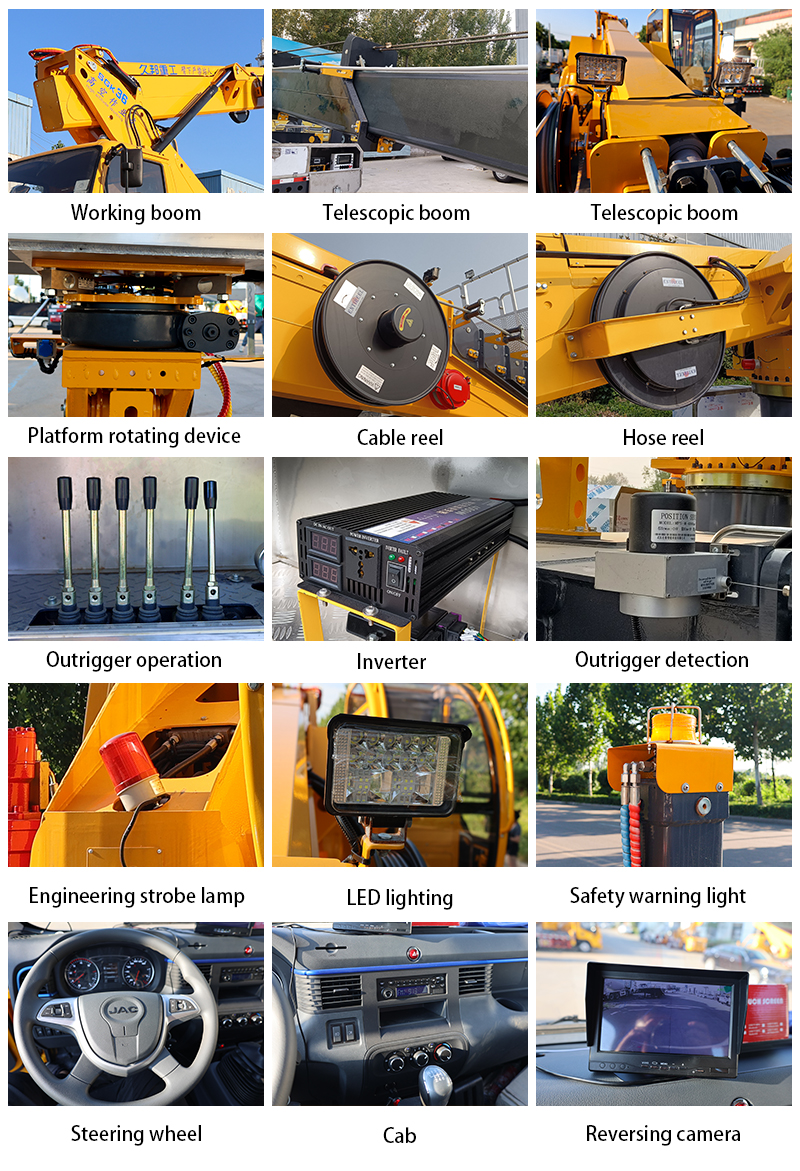

MORE PRODUCT DETAILS

Details determine product quality

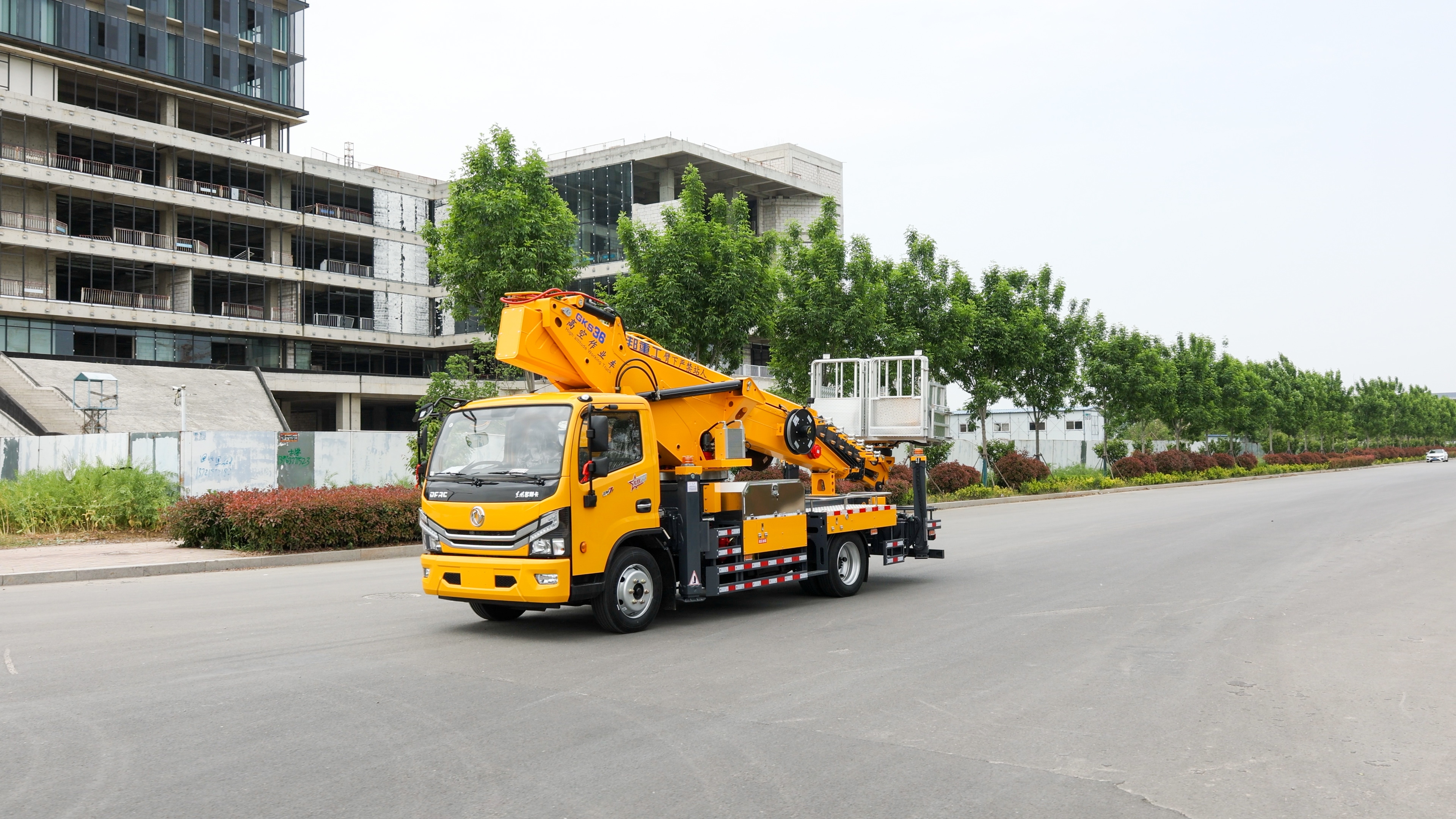

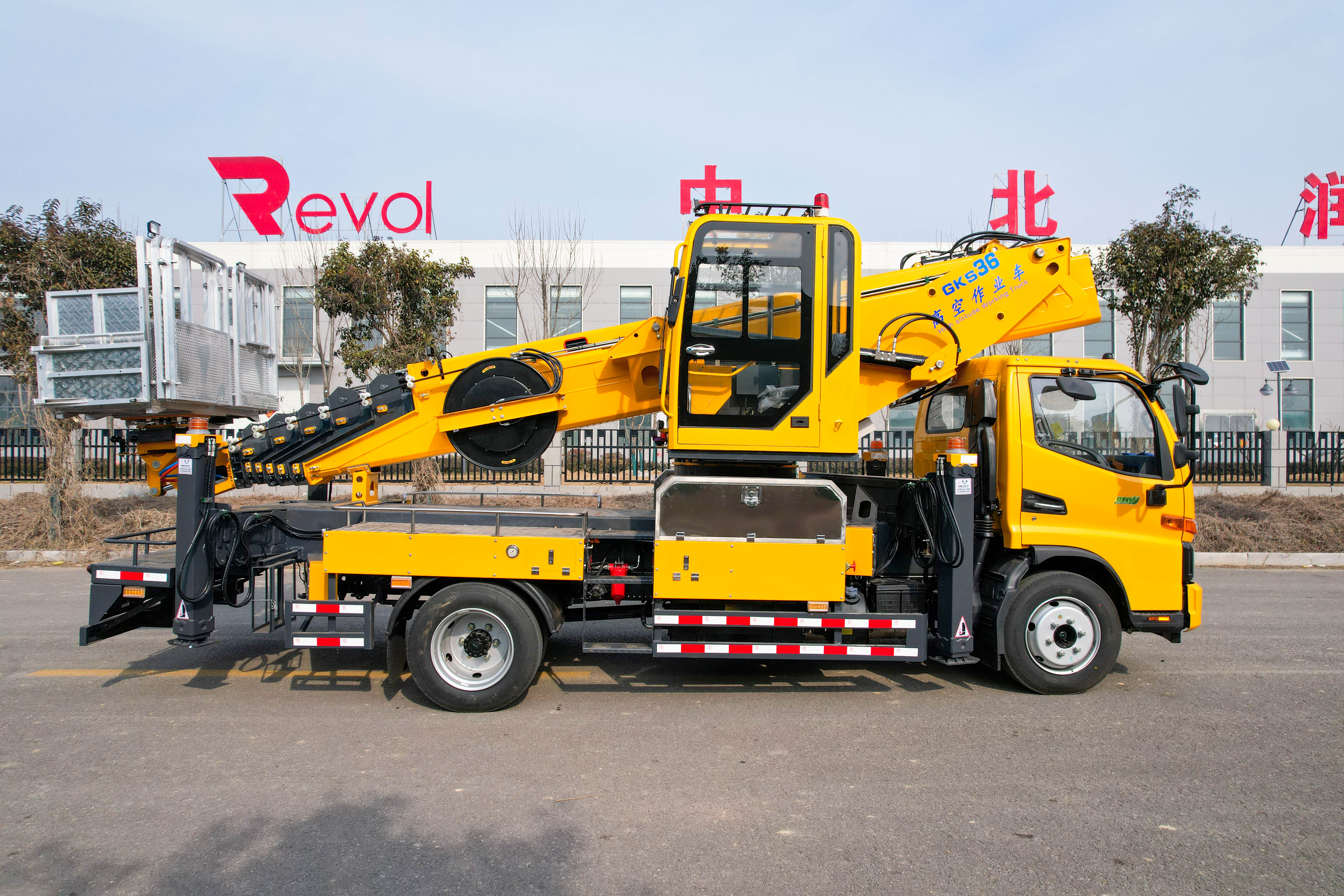

PRODUCT PHOTOGRAPH

More real product photos

MORE PRODUCTS

PRODUCTS CAN BE CUSTOMIZED ACCORDING TO YOUR NEEDS

Company Profile

Jining Jiubang Construction Machinery Equipment Co., Ltd., located in Jining, Shandong Province, the birthplace of Chinese Confucian culture, is a model enterprise in the heavy machinery manufacturing industry, focusing on the R&D, design and production of aerial work vehicles, truck mounted crane, folding boom cranes, spider crawler cranes and other products. At present, the company covers an area of 60,000 square meters, with laser cutting machines, bending machines, automatic digital processing equipment, etc., and has passed the ISO9001 international standard quality management system certification. Jiubang committed to developing high-tech products, has a number of technical patents, and has introduced the technology of Rexroth, Harvey, Siemens, Schneider and Mitsubishi to provide customers around the world with better products and services.

Main products: 21m, 23m, 26m, 27m, 28m, 32m, 36m, 40m, 45m, 50m aerial work vehicle, 32m aerial ladder trucks, self-propelled aerial work vehicle, truck mounted crane, folding boom crane, spider crawler crane, steel grabbing machine, laser leveling machine, etc.

CUSTOMER FEEDBACK

Widely praised and trusted

Packing & Delivery

FAQ

Q1: Is your company a factory or a trading company?
A: Yes,We are a factory specializing in the production of aerial vehicles.

Q2: Can you satisfy my special requirement?
A: Definitely! We can customize the products you need according to your needs.

Q3: What's your payment term?
A: We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. L/C:100% irrevocable Credit of Letter.

Q4: What is your terms of delivery?

A: EXW,FOB,CFR,CIF,DDU.

Q5: How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.

Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
